MIM 4340 Steel: Engineering Guide to Properties, Processing & Performance

MIM 4340 Steel Guide: Properties

MIM 4340 steel delivers 1600+ MPa tensile strength in complex geometries that machining can't economically produce. But here's the critical detail most engineers miss: a part sintered at 1100°C versus 1200°C differs by 30% in strength, and tempering at 350°C can cause catastrophic embrittlement. This guide gives you the processing parameters, performance data, and decision frameworks to specify MIM 4340 correctly—backed by real manufacturing data and empirical testing.

---

We manufacture custom MIM parts in 4340 and other low-alloy steels with heat treatment — upload your drawing for DFM feedback.

I. Why 4340 Steel for MIM

[Quick Reference]

• The 4340 advantage: 2% nickel = 2x impact resistance vs. 4140
• Peak performance: 1600+ MPa tensile, 60 HRC surface hardness
• Cost premium: ~30% more than 4140
• When it's worth it: Safety-critical + high stress + impact loading
• Global specs: AISI 4340 (US), 34CrNiMo6 (EU), SNCM439 (JIS)

1.1 The 4340 vs. 4140 Decision

This is the choice you'll face most often. Here's when each makes sense:

Choose 4340 when:

• ✓ Application involves impact or shock loading
• ✓ Stress levels exceed 800 MPa in service
• ✓ Safety-critical application (aerospace, defense, medical)
• ✓ Operating in temperature extremes (-40°C to +200°C)
• ✓ Fatigue life is critical (>10⁶ cycles)

Choose 4140 when:

• ✓ Static loading or low cyclic stress
• ✓ Strength requirement <1000 MPa
• ✓ Cost optimization is priority
• ✓ Commercial/industrial application (non-critical)

The difference maker: That 1.65-2.00% nickel in 4340 provides toughness that heat-treating alone can't achieve. At 40 HRC, 4340 delivers 60-80 J impact energy; 4140 delivers 30-40 J. When your part takes a hit, that's the difference between damage and catastrophic failure.

1.2 Chemical Composition: What Drives Performance

Table 1: MIM 4340 Chemical Composition

Element	Wt %	Critical Function
Carbon (C)	0.38-0.43	Every 0.1% = ~5 HRC. Controls max achievable hardness
Nickel (Ni)	1.65-2.00	The 4340 differentiator. Provides toughness + hardenability
Chromium (Cr)	0.70-0.90	Deep hardening, wear resistance
Molybdenum (Mo)	0.20-0.30	High-temp strength, prevents temper embrittlement
Silicon (Si)	0.15-0.35	Deoxidizer, strengthening
Manganese (Mn)	0.60-0.85	Hardenability, deoxidizer
P + S	≤0.035 each	Keep low—high levels cause brittleness

Why this matters for MIM: The Ni-Cr-Mo combination means through-hardening even in 50-100mm sections. For MIM parts (<10mm typical), you get completely uniform properties after heat treatment—no soft core, no hard case issues. This is critical for complex geometries where you can't control cooling rates as precisely as simple shapes.

1.3 Performance Envelope

What 4340 delivers:

• Strength range: 860 MPa (annealed) to 1980 MPa (hardened)
• Hardness range: 200 HV (annealed) to 60+ HRC (nitrided surface)
• Toughness: Charpy impact 25-110 J depending on heat treatment
• Fatigue strength: 550-650 MPa at 10⁷ cycles
• Service temperature: Continuous use to 250°C, intermittent to 400°C

The adjustability advantage: You can design one MIM part geometry, then create multiple product variants through different heat treatments. Same tooling, different performance profiles—this is 4340's strategic value.

---

II. MIM Processing: 4340-Specific Parameters

[Quick Reference]

• Critical parameter: Sintering temperature (1100-1200°C range)
• Performance lever: +100°C sintering = +30% strength potential
• Shrinkage: 15-18% linear—design molds accordingly
• Density target: >7.40 g/cm³ for structural applications
• Carbon control: 0.37-0.39% achieved via nitrogen atmosphere

2.1 Powder Requirements for 4340

What makes 4340 powder different:

• Particle size: <22μm (finer than traditional PM's 100μm+)
• Morphology: Spherical (gas-atomized) for packing density
• Oxygen content: <1500 ppm critical—higher levels create inclusions
• Nickel distribution: Must be homogeneous to avoid property variation

Powder choice impact:

• 90%<22μm: Standard, density →7.30-7.40 g/cm³
• 90%<16μm: Premium, density →7.45-7.50 g/cm³, +20% cost
• MA+CIP: Mechanically alloyed, best properties, +30% cost

Engineering decision: For most applications, 22μm powder at 1200°C sintering matches 16μm powder at 1100°C in final properties. Choose based on your supplier's process capability.

2.2 Injection Molding Parameters

4340-specific settings(deviation causes problems):

Parameter	Value	What Goes Wrong If Off
Barrel temp	175°C	<170°C: nickel segregation; >180°C: binder degradation
Injection pressure	12 MPa	Too low: voids, incomplete fill; too high: flash, residual stress
Mold temp	43°C	Affects part warpage and cycle time

Green part reality: 15-20% oversize, fragile, held together by binder. This is just your starting point.

2.3 Sintering: Your Primary Performance Lever

Table 2: Sintering Temperature Impact on Final Properties

Sinter Temp	Density	As-Sintered Strength	After HT Potential	Distortion Risk	When to Use
1100°C	7.30-7.40 g/cm³	800-900 MPa	1200-1400 MPa	Low	Standard, cost-optimized
1200°C	7.45-7.50 g/cm³	1000-1100 MPa	1400-1600 MPa	Medium	High-performance required
1300°C	7.50-7.60 g/cm³	1100-1200 MPa	1500-1800 MPa	High	Only when last 5% density needed

Critical process details:

• Atmosphere: Nitrogen controls carbon at 0.37-0.39%
• Soak time: 2-4 hours at peak temperature
• Cooling: Controlled in atmosphere to 400°C, then air cool
• Microstructure: Fully bainitic after cooling

Engineering decision: 1200°C sintering gives you 95-98% of maximum possible properties at reasonable cost/risk. Only specify 1300°C if your application genuinely needs that last increment and you can manage distortion.

2.4 Shrinkage Management

What you must account for:

• Linear shrinkage: 15-18% in each dimension
• Example: Final part 20.00mm requires mold cavity 23.53mm
• Tolerance impact: ±0.3-0.5% of final dimension
• Anisotropic risk: Complex geometries may shrink unevenly

Design strategy:

1. Start with CAD model at final size
2. Scale up 18% for mold design
3. Prototype and measure actual shrinkage
4. Adjust mold if needed (typically ±1-2% adjustment)

---

III. Mechanical Properties: Your Performance Selection Guide

[Quick Reference: Choose Your Performance]

Your Application Needs	Specify This HT	Get This Performance
Max wear resistance	Q+T 200°C	50-52 HRC, 1600 MPa, 20 J impact
High-stress structural	Q+T 400°C	40-43 HRC, 1350 MPa, 60 J impact
Impact-loaded	Q+T 600°C	32-35 HRC, 1000 MPa, 100 J impact
Heavy machining needed	Anneal only	95 HRB, 860 MPa, easy to cut

3.1 As-Sintered: Your Baseline

Table 3: As-Sintered Properties (Before Heat Treatment)

Sintering Temp	Density	Tensile	Yield	Hardness	Elongation
1100°C	7.30-7.40 g/cm³	800-900 MPa	650-750 MPa	250-300 HV	5-8%
1200°C	7.45-7.50 g/cm³	1000-1100 MPa	850-950 MPa	300-350 HV	3-6%

When to use as-sintered: Low-stress applications (brackets, housings) where cost optimization is priority. But to justify 4340's premium over 4140, you typically need heat treatment.

3.2 Heat-Treated: The Full Performance Range

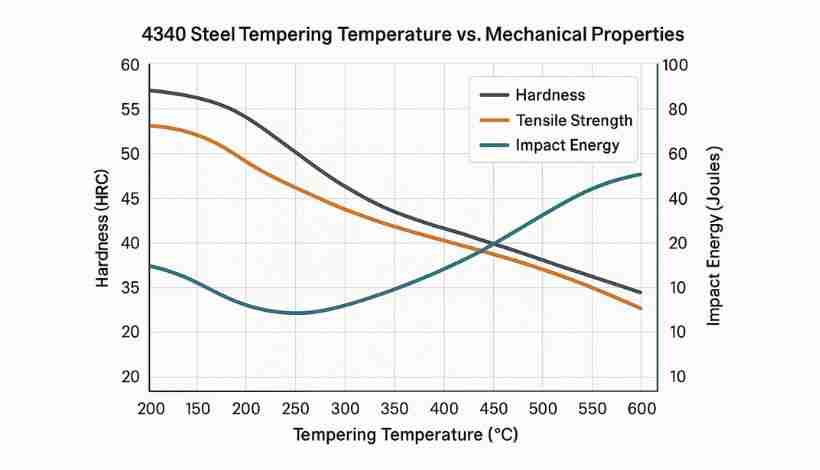

Table 4: Tempering Temperature vs. Properties (Your Selection Matrix)

Temper	HRC	Tensile	Yield	Elong.	Impact	Best For
200°C	50-52	1600 MPa	1450 MPa	2-4%	15-25 J	Cutting edges, wear parts
300°C	45-48	1500 MPa	1350 MPa	4-6%	25-40 J	High-stress gears
400°C	40-43	1350 MPa	1200 MPa	6-10%	40-60 J	Transmission components
500°C	35-38	1200 MPa	1050 MPa	10-14%	60-80 J	Shafts, structural
600°C	32-35	1000 MPa	850 MPa	14-18%	80-100 J	Springs, impact tools

How to use this table:

1. Start with your strength requirement(tensile or yield)
2. Check if the impact value is adequatefor your loading conditions
3. If impact is too low, move to higher tempering temperature
4. Accept the strength reductionas necessary trade-off

Example decision: You need 1200 MPa tensile. Table shows this at 500°C temper with 60-80 J impact. If your part sees shock loading, that impact energy is marginal—better to specify 600°C temper (1000 MPa, 80-100 J) and redesign for slightly lower stress.

3.3 The Embrittlement Zone: Critical Warning

⚠️ NEVER temper 4340 between 250-450°C (especially near 350°C)

What happens:

• Impact toughness drops 50-70%
• Hardness remains unchanged (looks fine on inspection)
• Part fails catastrophically under impact loading

Example of the trap:

• Temper at 350°C: 43 HRC, 10-15 J impact ←DANGEROUS
• Temper at 500°C: 36 HRC, 60-80 J impact ←SAFE

If your spec requires ~42 HRC: Choose 500°C temper (gives 36 HRC with good toughness) rather than risk brittle failure. Better to be slightly soft than dangerously brittle.

Safe zones only:

• ✓ Below 250°C: High hardness, low toughness (OK for wear applications)
• ✓ Above 450°C: Balanced properties
• ✗ 250-450°C:Forbidden zone

---

IV. Heat Treatment Protocols

[Standard Protocols You Can Specify]

PROTOCOLA:High Strength (1350MPa)1.Austenitize:845°C ×30min2.Oilquench:150-180°F3.Temper:400°C ×2hours→Result:40-43HRC,1350MPa,60J impactPROTOCOLB:Maximum Toughness (1000MPa)1.Normalize:890°C ×1hour, air cool2.Austenitize:845°C ×30min3.Oilquench:150-180°F4.Temper:600°C ×3hours→Result:32-35HRC,1000MPa,100J impactPROTOCOLC:Wear Resistance (1600MPa)1.Austenitize:845°C ×30min2.Oil quench3.Temper:200°C ×2hours4.Optional:Nitride at520°C ×24hours→Result:50HRC core,60HRC surface

4.1 Quenching: Getting to Martensite

Process requirements:

• Austenitizing temp: 830-860°C (845°C typical)
• Soak time: 20-30 minutes minimum for MIM parts
• Quench medium: Hot oil (150-180°F) standard for 4340
• Critical: Quench immediately—delays reduce hardness

Quench medium selection:

• Hot oil: Standard choice. Good hardness + minimal distortion
• Water: Avoid unless part geometry is extremely simple (high crack risk)
• Polymer: For complex geometries with tight tolerances

Reality check: As-quenched hardness is 54-56 HRC but extremely brittle—tempering is mandatory within 1 hour.

4.2 Tempering: Dialing In Your Properties

Tempering is NOT optional:

• Must occur within 1 hour of quenching
• Part should still be hand-warm when tempering starts
• Delayed tempering = cracking risk

Process:

1. Temperature selection: Use Table 4 to choose based on requirements
2. Soak time: 2 hours minimum (3-4 hours for critical applications)
3. Double tempering: Repeat cycle for aerospace/defense applications
4. Cooling: Air cool to room temperature

Why double temper: Stabilizes retained austenite (2-5% present after quenching). Prevents dimensional change during service.

4.3 Surface Hardening

For parts needing hard surface + tough core:

Nitriding(Maximum surface hardness):

• Process: 490-530°C in NH₃ atmosphere × 24-48 hours
• Surface hardness: 60-65 HRC (700+ HV)
• Case depth: 0.1-0.5mm
• No quenching: Excellent dimensional stability
• 4340 note: Nickel slows nitrogen diffusion—expect 1.5-2× cycle time vs. plain carbon steel

Induction/Flame Hardening(Selective hardening):

• Surface hardness: 48-52 HRC
• Case depth: 0.5-2mm
• Use for: Gear teeth, bearing surfaces, wear zones

---

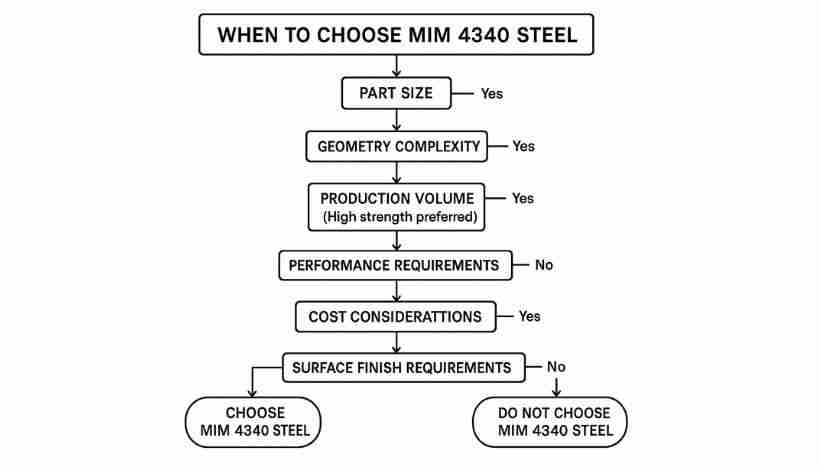

V. When to Choose MIM 4340 (Decision Framework)

5.1 The Sweet Spot

MIM 4340 is optimal when ALL five conditions are met:

1. ✓Part size: <100-200g weight
2. ✓Geometry: Complex 3D (undercuts, thin walls, internal features)
3. ✓Volume: >10,000 parts/year
4. ✓Performance: Strength >1000 MPa + good toughness required
5. ✓Environment: Non-corrosive or coating acceptable

Break even vs. machining: Typically 10,000-20,000 parts, but shifts lower for complex geometries. A part with 15 machining operations might break even at 5,000 parts.

5.2 When NOT to Use MIM 4340

Choose different materials/processes when:

Condition	Better Choice	Reason
Corrosion critical	MIM 17-4 PH stainless	4340 will rust without coating
Volume <5,000/year	CNC machining	Can't amortize tooling cost
Part >200g	Investment casting, machining	MIM size limitation
Tolerance <±0.3%	CNC machining	Or design for post-MIM machining
Simple geometry	Traditional PM, machining	MIM complexity advantage wasted
Moderate properties OK	MIM 4140, traditional PM	No need for 4340's premium

Cost reality: MIM tooling is a substantial upfront investment. At 5,000 parts, tooling amortization alone adds a significant cost per part. At 50,000 parts, it drops to a modest per-part figure. Volume matters.

5.3 MIM 4340 vs. Other Materials

4340 vs. 17-4 PH Stainless(The most common choice dilemma):

Factor	MIM 4340	MIM 17-4 PH
Max strength	1600+ MPa	~1300 MPa
Corrosion resistance	Poor (needs coating)	Excellent (stainless)
Cost	Lower	Higher
Use when	Controlled environment, max strength	Exposure to corrosion, medical

Decision rule: If your part will see moisture, chemicals, or requires sterilization, use 17-4 PH. If operating in dry, controlled environment and need maximum strength, use 4340.

---

VI. Design Guidelines for MIM 4340

[Design Rules Quick Reference]

✓ Wallthickness:0.8-4mm optimal (0.4mm min,8mm max)✓ Thicknessvariation:<3:1ratio within part✓ Draftangles:1-3° minimum✓ Insideradii:≥0.15-0.25mm✓ Toleranceas-sintered:±0.3-0.5% of dimension✓ For criticaldimensions:Add0.3-0.5mm machining stock✗ Avoid large flat areas (warpage risk)✗ Avoid sharp internal corners (stress concentrations)✗ Avoid deep small holes L/D >10:1✗ Don't specify tight tolerances on non-critical features

6.1 Leverage MIM's Strengths

Part consolidation example:

• Before MIM: Machined housing + 3 screws + 2 + assembly
• After MIM: Single integrated component
• Result: 40-60% cost reduction, improved reliability

Feature integration:

• ✓ Mold in mounting holes, slots, bosses
• ✓ Add ribs, gussets for strength (no extra cost)
• ✓ Include part numbers, logos (molded in)
• ✓ Create complex 3D contours impossible to machine

6.2 Tolerance Strategy

The hybrid approach(optimal cost-performance):

1. Design most features for as-sintered tolerance(±0.3-0.5%)
2. Add machining stock(+0.3-0.5mm)only on critical surfaces
3. Machine after sinteringonly those critical features

Example:

• Bearing bore Ø20mm ±0.01mm: Sinter at Ø19.5mm, machine to final
• Mounting holes Ø5mm ±0.3%: Leave as-sintered (±0.015mm adequate)
• External contour: Complex shape, ±0.5% OK, leave as-sintered

Cost impact: This saves 90% of machining cost vs. fully machined part.

---

VII. Specification and Quality

7.1 How to Specify MIM 4340 Correctly

✓ Complete specification must include(common mistake: leaving these out):

Specification Checklist:

□Material:AISI4340chemistry per ASTM A29□Process:Metal Injection Molding□Sintering:1100-1200°Cinnitrogen atmosphere□Density:Minimum7.45g/cm³ (>95% theoretical)□ Heattreatment:"Oil quench from 845°C + temper at 400°C"□Hardness:40-43HRC (or specify range)□ Mechanicalproperties:• Tensilestrength:≥1350MPa • Yieldstrength:≥1200MPa •Elongation:≥6% • Charpyimpact:≥40J at room temperature□ Critical dimensions and tolerances□ Surface finish requirements□ Coating (ifrequiredforcorrosion protection)

Common specification errors:

• ❌ "MIM 4340 steel" (incomplete—no heat treatment specified)
• ❌ "Hardness 40 HRC" (no process specified to achieve it)
• ❌ Missing density requirement (could get low-density part)
• ❌ No impact toughness spec (could get embrittled part)

7.2 Acceptance Criteria

Critical inspection points:

Property	Specification	Test Method
Density	≥7.45 g/cm³	Archimedes (ASTM B962)
Hardness	Per spec ±2 HRC	Rockwell C (ASTM E18)
Tensile	Per spec, min values	ASTM E8
Impact	Per spec, min value	Charpy V-notch (ASTM E23)
Microstructure	Tempered martensite	Metallographic examination

Red flags during inspection:

• Density <7.40 g/cm³: Indicates poor sintering
• Hardness variation >3 HRC across part: Non-uniform heat treatment
• Low impact energy with correct hardness: Embrittlement zone tempering
• Porosity visible at 10× magnification: Unacceptable for structural parts

7.3 Common Defects and Root Causes

If you see these defects:

Defect	Most Likely Cause	Prevention
Warpage	Non-uniform wall thickness	Design uniform sections
Low density	Insufficient sintering temp/time	Increase to 1200°C
Soft spots	Incomplete austenitizing	Extend soak time to 30+ min
Brittleness	Tempered in 250-450°C zone	Specify >450°C tempering
Cracks	Quench shock, complex geometry	Pre-heat quench oil, add radii

---

VIII. Common Mistakes and How to Avoid Them

8.1 Specification Mistakes

Mistake #1: Incomplete Material Spec

• ❌ Specifying: "MIM 4340 steel, 40 HRC"
• ✓ Should specify: "MIM 4340, sintered at 1200°C, oil quenched from 845°C, tempered at 400°C, final hardness 40-43 HRC, density ≥7.45 g/cm³, impact ≥40 J"
• Why it matters: You get what you specify. Incomplete specs lead to inconsistent parts.

Mistake #2: Tempering in Embrittlement Zone

• ❌ Specifying: "Temper at 350°C to get 42 HRC"
• ✓ Should specify: "Temper at 500°C (accept 36 HRC for good toughness)"
• Consequence: Parts pass hardness inspection but fail catastrophically under impact

Mistake #3: Unrealistic Tolerances

• ❌ Specifying: "All dimensions ±0.01mm"
• ✓ Should specify: "Critical features ±0.01mm (with machining stock), non-critical ±0.3%"
• Cost impact: Over-specifying tolerances can triple part cost unnecessarily

8.2 Design Mistakes

Mistake #4: Converting Machined Designs Directly

• ❌ Taking a machined part and just making it in MIM
• ✓ Redesign to leverage MIM advantages (part consolidation, integrated features)
• Missed opportunity: You pay MIM tooling cost but don't get MIM benefits

Mistake #5: Not Accounting for Shrinkage

• ❌ Designing mold at final part size
• ✓ Scale up 18% for mold design, verify with prototypes
• Result: Parts are undersized and don't fit assembly

Mistake #6: Large Flat Areas Without Support

• ❌ Designing large, thin, flat sections
• ✓ Add ribs, texture, or slight curvature to prevent warpage
• Consequence: Parts warp during sintering or heat treatment

8.3 Process Mistakes

Mistake #7: Skipping or Delaying Tempering

• ❌ Quenching and then tempering the next day
• ✓ Temper within 1 hour while part is still hand-warm
• Consequence: Quench cracks, dimensional instability

Mistake #8: Welding Heat-Treated Parts Without Proper PWHT

• ❌ Welding 40 HRC parts with no preheat or post-weld treatment
• ✓ Preheat to 300°C, use proper filler, stress relieve after welding
• Consequence: HAZ cracking, brittle weld zone

---

IX. Practical Application Examples

9.1 Aerospace Landing Gear Bracket

Requirements:

• High strength (1200+ MPa)
• Excellent toughness (shock loading during landing)
• Complex geometry (integrated mounting features)
• Volume: 25,000 parts/year

Solution:

• Material: MIM 4340
• Sintering: 1200°C for maximum density
• Heat treatment: Quench + temper at 500°C
• Result: 35-38 HRC, 1200 MPa, 70 J impact
• Cost saving: 55% vs. machining (part consolidation)

Why 4340 over alternatives: 17-4 PH doesn't provide sufficient strength; 4140 lacks impact resistance for shock loading.

9.2 Automotive Transmission Gear

Requirements:

• High hardness for wear (tooth surfaces)
• Tough core (fatigue resistance)
• Complex tooth geometry
• Volume: 100,000 parts/year

Solution:

• Material: MIM 4340
• Sintering: 1100°C (cost optimization)
• Heat treatment: Quench + temper at 400°C + induction harden teeth
• Result: 48 HRC tooth surface, 40 HRC core
• Cost: moderate per part at volume

Why MIM: Gear teeth geometry + internal features molded in. Machining would carry a substantial per-part cost, with break-even at 8,000 parts.

9.3 Industrial Pump Component

Requirements:

• Moderate strength (900 MPa)
• Good machinability (post-MIM threads)
• Corrosion protection needed
• Volume: 15,000 parts/year

Solution:

• Material: MIM 4340
• Sintering: 1100°C
• Heat treatment: Normalize only (no quench)
• Surface: Electroless nickel plating
• Result: 28-30 HRC, 900 MPa, easy to tap threads

Alternative considered: Could use 4140, but customer specified 4340 for standardization across product line.

---

Frequently Asked Questions

Conclusion: Your MIM 4340 Decision

Use MIM 4340 When

You need all five of these conditions:

1. ✓ Complex 3D geometry (MIM's advantage)
2. ✓ High performance (>1200 MPa strength + toughness)
3. ✓ Production volume >10,000/year (economics)
4. ✓ Part size <100g (process capability)
5. ✓ Non-corrosive environment (material limitation)

Choose Alternatives When

• Corrosion resistance is critical →Use MIM 17-4 PH stainless
• Volume is low (<5,000/year) →Use CNC machining
• Part is large (>200g) →Use investment casting or machining
• Geometry is simple →Use traditional PM or machining
• Only moderate properties needed →Use cheaper 4140

Critical Specifications

Never specify "MIM 4340" without these parameters:

• Sintering temperature (1100-1200°C)
• Density requirement (≥7.45 g/cm³)
• Complete heat treatment (quench + temper temperatures)
• Final mechanical properties (not just hardness)
• Impact toughness specification (often forgotten)

The Non-Negotiables

1. Avoid 250-450°C tempering→ causes embrittlement
2. Temper within 1 hour of quenching→ prevents cracking
3. Specify density→ below 95% compromises properties
4. Design for 18% shrinkage→ critical for dimensional accuracy
5. Include impact testing→ hardness alone is insufficient

Final Thought

MIM 4340 is not just a material—it's a material system where final performance depends on every step from powder selection through heat treatment. Work closely with your MIM supplier from design stage through production. The part geometry, sintering parameters, and heat treatment are interconnected; optimizing one without considering the others leads to suboptimal results.

When specified and processed correctly, MIM 4340 delivers wrought-like strength in geometries that machining can't economically produce. When specified incorrectly, it's an expensive lesson in the importance of understanding your materials.

---

Engineering Note: This guide provides technical direction based on industry standards, manufacturing specifications, and empirical testing. For critical applications requiring specific certifications (aerospace, medical, defense), conduct application-specific qualification testing and work with suppliers holding appropriate certifications (ISO 13485, NADCAP).

Source Custom MIM Parts from Emitech

Nanjing Emitech delivers MIM from tooling through sintering and finishing, plus precision CNC machining for prototypes and secondary operations. Custom MIM parts · CNC machining services · MIM services · Request a quote

Related MIM & CNC Guides

• MIM-Fe02Ni
• MIM-Fe04Ni
• MIM-Fe08Ni
• Sintered Steel Guide
• MIM Material Selection Guide
• Metal Injection Molding (MIM) Services
• MIM Process Steps
• MIM Design Guidelines
