What is the difference between sintering and melting in powder metallurgy?

Sintering heats metal powder to 70-90% of its melting point (e.g., 1120°C for iron vs. 1538°C melting point), causing atomic diffusion and bonding without liquefaction. Melting exceeds the melting point, creating liquid metal. Sintering allows you to combine materials with vastly different melting points (like tungsten carbide at 2870°C and cobalt at 1495°C) that cannot be melted together without destroying one component.

Why do PM parts have lower strength than forged parts?

Conventional PM parts retain 5-15% residual porosity after sintering, reducing load-bearing cross-section. A forged part is 100% dense. A conventionally sintered steel part at 92% density achieves around 450 MPa tensile strength, while the same steel forged reaches around 650 MPa. Secondary operations like copper infiltration can increase PM part strength to around 600 MPa, or HIP can eliminate all porosity, matching or exceeding forged properties.

How much does PM tooling cost and what volume justifies it?

Compaction tooling ranges widely: relatively modest for simple single-level parts, and substantially higher for complex multi-level geometries requiring multiple punches and core rods. A typical automotive gear die set is precision-manufactured to 0.0002" tolerances from hardened tool steels with expected life of 500,000-2,000,000 cycles. PM becomes economical only at volumes exceeding 10,000-50,000 parts annually, where tooling cost amortizes to a small per-part figure.

Can you make large parts with powder metallurgy?

Conventional PM is limited by press tonnage, typically restricting parts to under 50 square inches projected area and 35 lbs weight. The largest conventional PM presses (around 4000 tons) can produce parts up to roughly 100 sq. in. For larger components, Cold Isostatic Pressing (CIP) can compact parts up to several feet in dimension and over 500 kg weight, though with reduced geometric complexity compared to conventional PM.

What sintering atmosphere is required and why does powder selection affect it?

Most sintering uses nitrogen-hydrogen blends — a common composition for steel is 90% N₂ + 10% H₂. Nitrogen provides inert coverage preventing oxidation; hydrogen acts as reducing agent, chemically removing surface oxides (FeO + H₂ → Fe + H₂O) that block metallurgical bonding. Powder selection directly determines hydrogen requirement: water-atomized powder (2000-5000 ppm oxygen) may need 25-50% H₂, while gas-atomized powder (under 500 ppm oxygen) needs only 5-10% H₂ — a direct cost consequence of your stage-one powder decision.

How does powder metallurgy compare to metal additive manufacturing?

Both use metal powder but differ fundamentally in economics and geometry. PM compacts and sinters in bulk, achieving 30-60 parts per hour at very low per-part cost for geometries suited to axial pressing. Metal AM (selective laser melting, electron beam melting) builds layer-by-layer at 2-20 hours per part at a far higher per-part cost, but enables internal channels, lattice structures, and topology-optimized geometries impossible with PM. PM dominates mass production above 10,000 units per year; AM is most justified for prototyping, low-volume custom parts under 100 per year, and geometries with conformal cooling channels or extreme complexity.

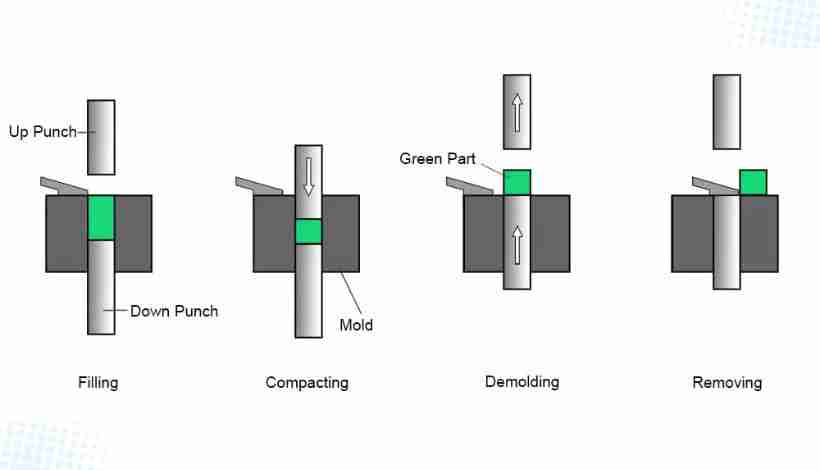

What is green strength and why does it matter for PM production?

Green strength is the mechanical integrity of the compacted powder part before sintering, typically 2-10 MPa tensile strength, derived from mechanical interlocking of deformed particles and binder adhesion rather than metallurgical bonding. Adequate green strength prevents cracking during three critical handling steps: ejection from the die (forces can reach 5-20 tons for large parts), transfer from press to furnace, and loading into sintering trays. Insufficient green strength below 1.5 MPa causes 1-5% scrap rates before any sintering has occurred.

What dimensional tolerances can powder metallurgy achieve?

As-sintered parts typically achieve ±0.3% dimensional tolerance on pressed dimensions (e.g., ±0.015mm on a 50mm diameter). Sizing operations improve this to ±0.1-0.15% (±0.005-0.0075mm on 50mm). Perpendicular dimensions parallel to pressing direction are more variable at ±0.5-1.0% due to powder fill variations and density gradients. Surface finish ranges from Ra 1.5-3.0 µm as-sintered, improving to Ra 0.8-1.5 µm after sizing or steam treating — comparable to investment casting but wider than machined tolerances of ±0.01-0.05mm.

Can PM parts be welded or machined after sintering?

Machining is possible but conventional PM parts with 8-15% porosity cause accelerated tool wear (20-40% shorter tool life) due to interrupted cutting. Resin impregnation significantly improves machinability. Common post-sintering machining includes drilling, tapping threads, milling flats, and grinding bearing surfaces. For welding, residual porosity acts as stress concentrators and absorbs weld spatter; MIG/TIG welding is preferred over resistance welding. Fully dense PM parts (HIP'd or infiltrated) weld similarly to wrought materials, and brazing is often preferred over welding for joining standard PM components.
